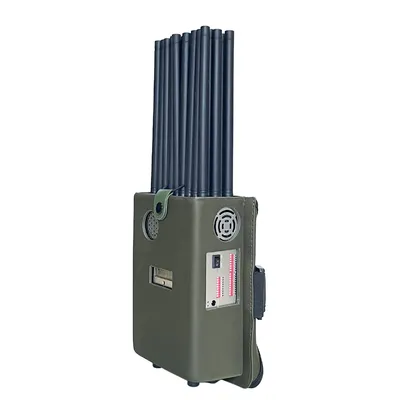

New Handheld 28 Bands FM Radio Wi-Fi6E Wi-Fi2.4G Wi-Fi5GGPS LOJACK LORA UHF VHF 433 315 868 CDMA GSM 3G 4G 5GCell Phone Signal Jammer,Battery capacity LCD Display,With Nylon Cover For Portable, 28Watts Jamming up to 25 meters.
Basic Specifications
Jam Signal Type:Full Bands Mobile Phone 5G/4G/3G/2G +WiFi2.4G/5G+ GPSL1-L5UHF/VHF/LOJACK+RC433 315 868+LORA+FM Radio+WiFi6E
Output Power:Total 28W,1W each band with 2dbi gains omni antennas.
Jam Radius:2-25 meters(Still depends on the strength signal in given area).
Power Supply:AC110-240V to DC12V
Cooling System:High efficiency aluminum alloy radiator, Build-in3x cooling fan.
Working Time:Built-in battery continues working: Around 80 minutes
Product Size:200x133x66mm (without antenna)
Product Weight: appr.3.0 KGS
Package Contents:Jammer Host x 1,AC Charger x1, omniantenna x27,Car Charger x1,Nylon cover x1.
Product description:
New unique 28 bands with 27 antennas all-in-one design wireless signal Jammer with nylon cover for portable, jamming all types of Android phones, Tablets, Smart Phones, iPhones, Win phones etc. that shield GSM, 3G, 4G 5G, and CDMA 450Mhz, Block GPS, Glonass, Beidou, Wi-Fi 2.4G, Wi-Fi 5G,Wi-Fi 6E, Walkie-Talkie UHF/VHF and RF signals like 315, 433, 868, 915, LORA, LOJACK etc. Also is 88-108MHz FM radio breaker, Battery capacity LCD display (Capacity percentage, working Voltage/Current)is popular in 2023 and in years to come.
Advantages:
The world first 28 bands portable jammer with 27 antennas design, blocking FM radio and Wi-Fi6E and all cell phone 5G 4G 3G 2G LORALOJACK GPSWi-FiRF signals.
28 watts high output power, Jamming range from 2 to 25 meters (at-75dBm, depends on signal strength in given area).
Good cooling system with 3 cooling fans inside and bigger hot sink, Nylon cover for handheld.
With DIP switch, can turn on/off any signal band without affect other bands while use.
With car charger, 12V DC/AC power supply is also available.
With built-in battery, can work 80 minutes at least, repeated charging.
Battery capacity LCD display (Capacity percentage, working Voltage/Current).
Safe case packing and handheld for option.
Application:
1. It can be applied at meeting rooms, conference rooms, museums, galleries, theatres, concert halls, churches, temples, restaurants, classrooms, training centers, factories, banks, trains, bus and morePlaces that require silence, confidentiality and information security.
2.For some locations of special purpose such as hospitals, gas stations and more, please do field test first to make sure no interference happened to the normal operation of their equipment and instrument.
Key technical specifications: FM radio & Wi-Fi6E Jammer for Worldwide |
|||
Channel |
Output port |
Frequency range |
Average out-putting power |
CH 1 |
VHF/LOJACK |
135-175MHz |
30±1dBm/ 1±0.2W |
CH 2 |
5G600 |
617-698MHz |
30±1dBm/ 1±0.2W |
CH 3 |
5G3700 |
3600-3900MHz |
30±1dBm/ 1±0.2W |
CH 4 |
3G2100 |
2110-2180MHZ |
30±1dBm/ 1±0.2W |
CH 5 |
RC-868 |
868MHz |
30±1dBm/ 1±0.2W |
CH 6 |
WIFI5.2G802.11.a |
5100-5500MHz |
30±1dBm/ 1±0.2W |
CH 7 |
4G2600 |
2620-2690MHZ |
30±1dBm/ 1±0.2W |
CH 8 |
4G800 |
790-826MHz |
30±1dBm/ 1±0.2W |
CH 9 |
FM Radio |
80-108MHz |
30±1dBm/ 1±0.2W |
CH 10 |
RC-433 |
433-434MHz |
30±1dBm/ 1±0.2W |
CH 11 |
4G700 |
700-803MHz |
30±1dBm/ 1±0.2W |
CH 12 |
GPSL1 |
1560-1610MHz |
30±1dBm/ 1±0.2W |
CH 13 |
LORA/RC915 |
900-930MHz |
30±1dBm/ 1±0.2W |
CH 14 |
4G2500 |
2500-2620MHz |
30±1dBm/ 1±0.2W |
CH 15 |
GPSL2L3L4L5 |
1170-1390MHz |
30±1dBm/ 1±0.2W |
CH 16 |
CDMA850 |
851-894MHZ |
30±1dBm/ 1±0.2W |
CH 17 |
4G1700 |
1710-1780MHz |
30±1dBm/ 1±0.2W |
CH 18 |
WIFI 6E802.11ax |
5925–6425MHz |
30±1dBm/ 1±0.2W |
CH 19 |
RC-315 |
315MHz |
30±1dBm/ 1±0.2W |
CH 20 |
GSM900 |
925-960MHz |
30±1dBm/ 1±0.2W |
CH 21 |
DCS1800 |
1805-1920MHz |
30±1dBm/ 1±0.2W |
CH 22 |
WIFI2.4G802.11.b &g |
2400-2500MHz |
30±1dBm/ 1±0.2W |
CH 23 |
WIFI5.8G802.11.a |
5500-5900MHz |
30±1dBm/ 1±0.2W |
CH 24 |
5G3300/3500 |
3300-3600MHZ |
30±1dBm/ 1±0.2W |
CH 25 |
UHF&CDMA450 |
400-470MHz |
30±1dBm/ 1±0.2W |
CH 26 |
5G1500 |
1427-1518MHz |
30±1dBm/ 1±0.2W |
CH 27 |
PCS1900 |
1920-2000MHz |
30±1dBm/ 1±0.2W |
CH 28 |
4G2300 |
2300-2400MHz |
30±1dBm/ 1±0.2W |
Power supply: adapter 50 to 60Hz AC (110-240V AC/12V DC) Car Charger: DC12V IN. Built-in battery continues working: Around 80 minutes. |
|||
Dimensions: (length,width, height) 200x133x66mm (without antenna). Length of antenna :166-195mm. Gain:2.0 dbi |
|||
Packing size:295*260*125mm Net weight: 2.2kg Gross weight: 3.0kg |
|||
Total power: 28Watts |
|||
Warranty: one year from delivery date |
This product is in stock now, we guarantee shipping within 48 hours and offer 1 year warranty for all our products. Brought to you by the leader in security devices and best Signal Jammers, Jammerall.
Important Notes for Jamming Distance: The jamming distances we mentioned on website are for customer's reference only. The actual jamming distance will be varied depending on the signal strength and the use location and if full charges, etc.
Important Notes for Portable Jammers with No Cooling Fan: Do not use the jammer when it is charging, or it will burn the jammer as it has no built-in fan. If because of this factor due to the broken of the jammer, the customer will lose the authority of free repairation .
