Fixed 2km RF Detection and Directional Detection 3km Countermeasure Fu

5km RF detection: Real-time detection of intruding UAVs

3km protocol analysis: Locating intruding UAVs and the pilots

3km RF jamming: Interference to UAV remote control, video transmission, and GNSS navigation signals

BENEFITS

1. Integration of protocol analysis and RF detection; extensive UAV data base with over 400 models; effective detection of both hostile and friendly UAVs.
2. 400MHz~6GHz customizable full-band coverage. Intelligent jamming strategy: Utilizing different jamming strategies based on the brand, model, and distance of the UAV.
3. On-the-move detection and jamming for most commercial drones

A new function added:

Precision strike function: It should be able to carry out precise strikes on designated drones (such as DJI), causing the designated drone to return home, and should not affect the normal flight of other drones of the same model, the same working frequency band, and the same direction within the interference range.

Main Specification:

Effective Targets: Drone ID & Remote ID

Detection Radius: 3km

Detection Information: SN number, coordinates, altitude, yaw angle, speed, remote controller coordinates (or return point) information, etc.

RF Detection

Frequencies: 0.4GHz~6GHz

Detection Radius: 5km

Detection Information: Spectrum, communication protocol type, current operating frequency band, direction, etc.

RF Jamming

Frequencies: 400MHz~6GHz customizable full-band cover-age

Jamming Radius: 3km

IP Rating: IP67

Operating Temperature: -40°C~+60°Cs

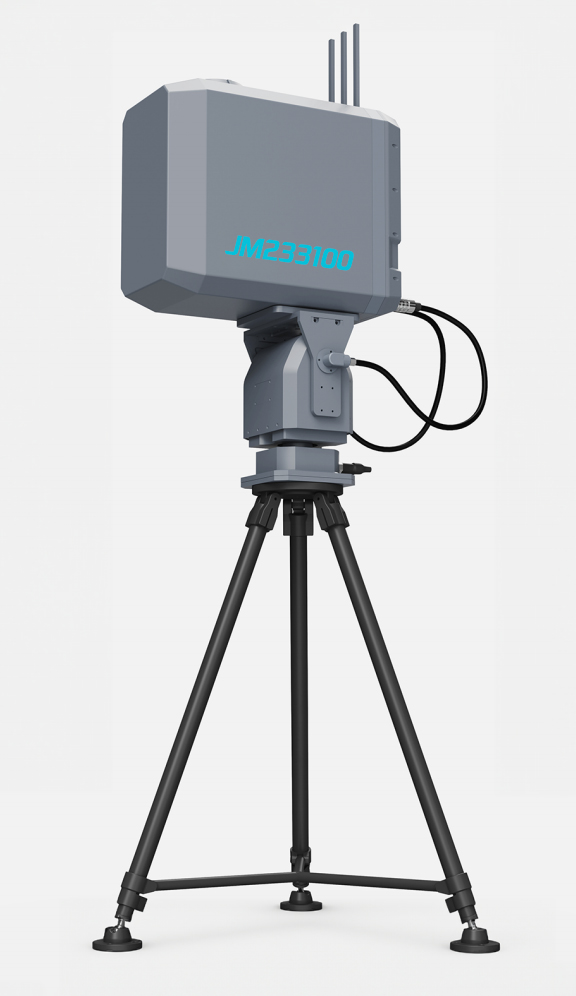

Hardware

Main Device Dimensions: 508 x 261.5 x 450.5mm (LxWxH)

Main Device Weight: 10.2kg

Pan-Tilt Platform Dimensions: 265 x 180 x 315mm (LxWxH)

Pan-Tilt Platform Weight: 12.5kg

Tripod's minimum working height / corresponding support radius: 73Omm/64Omm

Tripod's maximum working height / corresponding support radius: 1546mm/720mm

Tripod Weight: 6.55kg

This product is in stock now, we guarantee shipping within 48 hours and offer 1 year warranty for all our products. Brought to you by the leader in security devices and best Signal Jammers, Jammerall.

Important Notes for Jamming Distance: The jamming distances we mentioned on website are for customer's reference only. The actual jamming distance will be varied depending on the signal strength and the use location and if full charges, etc.

Important Notes for Portable Jammers with No Cooling Fan: Do not use the jammer when it is charging, or it will burn the jammer as it has no built-in fan. If because of this factor due to the broken of the jammer, the customer will lose the authority of free repairation .
