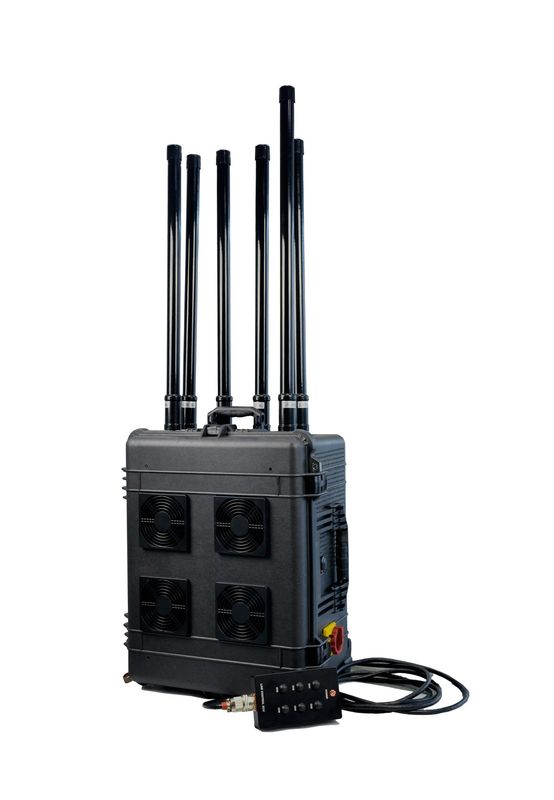

High Power 300W 6 Channels Drone Signal Jammer for UAV Up to 1000m

Intrusion of a UAV (Unmanned Aerial Vehicle) or Drone can present a nuisance and potentially a real security threat at public events and secure facilities. This High Power 300W 6 Channels Drone Signal Jammer for UAV Up to 1000m is designed to clear the area of these unwanted vehicles.

Features

• Ultra-wideband jamming coverage;

• Draw-bar box designed for portability and easy moving;

• Built-in rechargeable battery can be used for 90~120 minutes after being fully charged;

• Manual switch and remote control;

• Each channel module can start or close individually;

• Efficient frequency division ensures the best interference effect on signals of different frequencies;

• Efficient power distribution minimizes power loss and improves efficiency; the power can be regulated as needed ( optional gear regulation);

• Military standard casing, which is anti-throw, pressure-resistant and durable;

• AC110-220V/Built-in battery supply (DC24V)/Vehicle power supply (DC24V);

• Built-in efficient cooling fan and cooling fin ensures the product work stably in a long service life

Applications

It is suitable to protect important leadership or VIP security, individual combat, SWAT teams, EOD teams, anti-terrorist units, anti-drug units, bomb squad, security checkpoints, administrative law enforcement, hostage negotiations, border control and military security forces and other application areas.

Specification

• Affected Frequencies Bands(Frequency parameters can be customized. Typical frequencies are shown below):

WiFi 2.4G: 2400-2450MHz

WiFi 2.4G: 2450-2500MHz

WiFi 5.8G: 5727-5850MHz

GPSL1: 1520-1580MHz

433: 433MHz

868: 868-920MHz

• Transmission Power: Integrated Equipment≥300W,each channel≥50W

• Jammed Signal Types: CDMA:2.4G,2.4G,5.8G,GPSL1,433, 868-920MHz

• Output Channel: 6 output channels

• Net Weight: 49kg, Total Weight: 85kg Aviation Case included

• Dimensions: Host:(L*W*H)650*509*357mm, Antenna:760mm Φ35

• Ambient Temperature: -10℃-+50℃

• Relative Humidity: ≤80%

• Power Consumption: ≤360W

• Power Input: AC100-240V,DC24V

• Battery: 24V,46AH,Built-in standby battery can used for 90-120 minutes

• Antenna Parameters: Omni antennas,gain7dBi

• Switch Control: Manually

• Equipment Chassis: Metallic Paint

• Shielding Range: up to 1000m

Package Contents

• Jammer Host x 1

• Antenna x 6

• AC Charger x 1

• Line Control x 1

This product is in stock now, we guarantee shipping within 48 hours and offer 1 year warranty for all our products. Brought to you by the leader in security devices and best Signal Jammers, Jammerall.

Important Notes for Jamming Distance: The jamming distances we mentioned on website are for customer's reference only. The actual jamming distance will be varied depending on the signal strength and the use location and if full charges, etc.

Important Notes for Portable Jammers with No Cooling Fan: Do not use the jammer when it is charging, or it will burn the jammer as it has no built-in fan. If because of this factor due to the broken of the jammer, the customer will lose the authority of free repairation .
