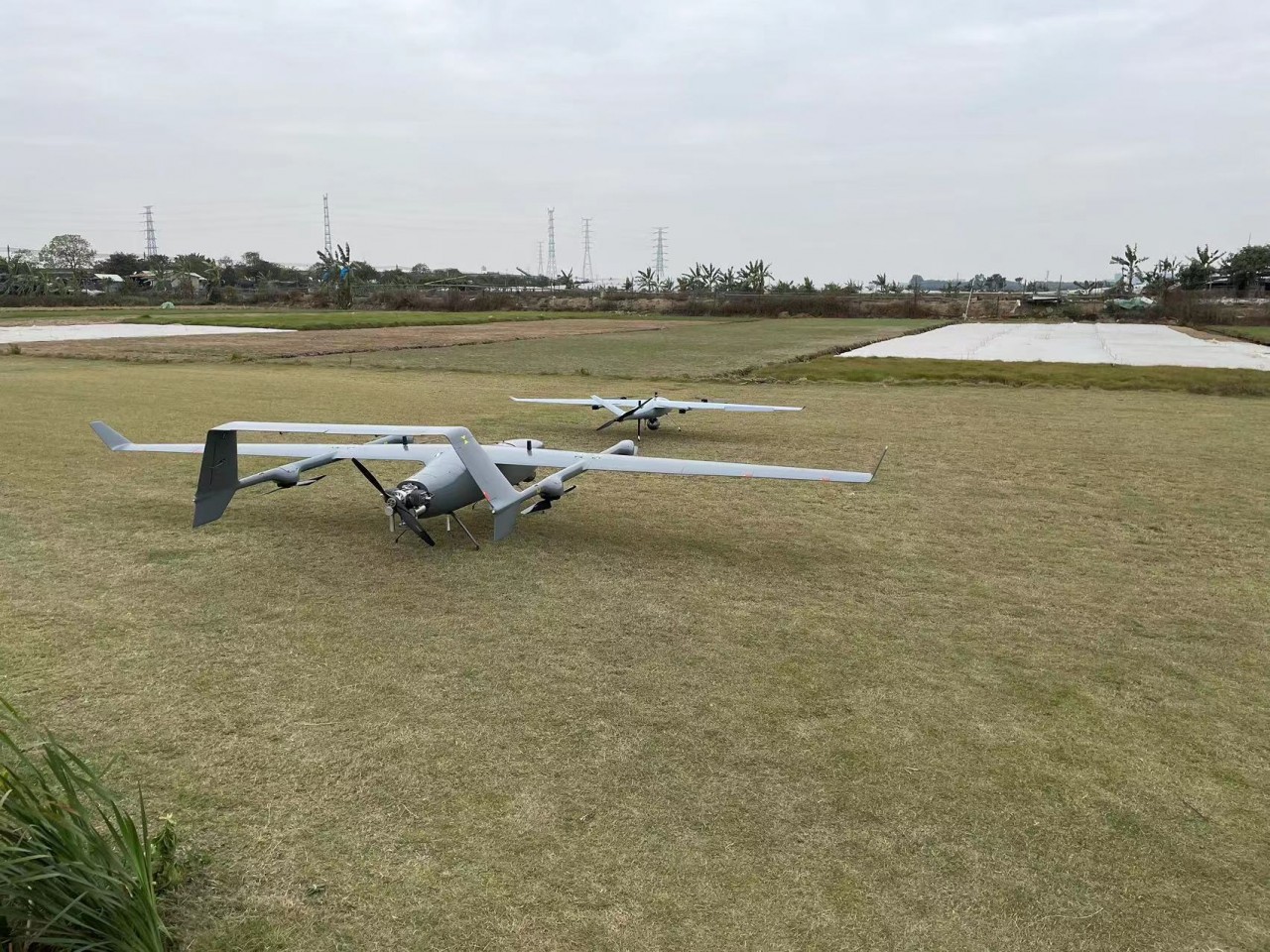

Hybrid Power Unmanned Aerial Vehicle 10 Hours Endurance

Home
Drone Unmanned Aerial Vehicle
Hybrid Power Unmanned Aerial Vehicle 10 Hours Endurance

Hybrid Power Unmanned Aerial Vehicle 10 Hours Endurance

Price:

US$93,500.00

SKU:

JM302896

Rating:

( 1 product review )

Shipping:

Calculated at checkout

Your payment details are fully protected and encrypted by
256-Bit SSL security. Your privacy and security is guaranteed.

Product Description

The most complete VTOL series：

Ultimate Performance & Ultimate Intelligence

1000km Maximum range,

>10h Maximum endurance,

100km Operation radius,

20kg Maximum payload.

This drone adopts hybrid power, with streamlined high-aspect-ratio wings and wing-body integrated layout, and can achieve 10h of endurance. Meanwhile, the drone is equipped with a fully automatic takeoff and vertical takeoff and landing system and can be additionally equipped with a high-precision stable photoelectric platform. The UAV is featured by fully autonomous operation, providing users with more convenient and reliable operations, more flexible application and more simplified operation threshold.

UItimate Performance: 10h super-long endurance +20kg

maximum payload. It adopts highly cambered blade, high lift coefficient, and be suitable for prolonged hanging.

Quick Response: Disassembly and assembly can be completed in 15 min without any tool and multiple mission payload can be customized.

Very Low Threshold: With a fully autonomous operating system, enabling simpler operation.

The Technical Parameter:

Overall Size: 4940*2560*900mm

Maximum Takeoff Weight: 60kg

Maximum Flight Speed:110km/h

Standard Payload: 10kg

Standard Cruise Speed: 83km/h

Maximum Payload: 20kg

Engine: 2 Stroke EFl engine

Operating Temperature: -20~60℃

Endurance: >10h

Maximum Flight Altitude (Average Altitude): 6000m

Maximum Range: 1000km

Wind Resistance: For Cruise Mode,Level6/For VTOL, Level 4

1. The drone:

A. Includes UAV flight platform (manual + tools + certificate)

B. 150 km digital transmission, 150 km image transmission, GPS, digital transmission + image transmission antenna UAV comprehensive protection equipment.

C. Including 1pcs*security version unmanned aviation box.

D. Remote control included.

2. Power Battery: 9pcs*6000MAH Power Battery

3. Charger: 1 PCS

4. GCS: Ground Station System, includes charger + ground station transport box.

5. Date Link: 150KM Data link ground end, 150KM Tripod included.

6. Pod: Two-axis gimbal camera with three lights(visible light, 30x continuous optical zoom, 42mminfrared, 5km laser ranging), instructions included, pod transport box.

7. Spare part: 6000MAH Battery 9 pcs (optional); Motor; Propeller(pair).

This product is in stock now, we guarantee shipping within 48 hours and offer 1 year warranty for all our products. Brought to you by the leader in security devices and best Signal Jammers, Jammerall.
